船用二氧化碳滅火裝置

Marine CO2 Fire Extinguishing Plant

所屬分類：船用二氧化碳滅火裝置

概要：滅火裝置由儲存瓶組、儲存瓶組架、液體單向閥、集流管、選擇閥、壓力釋放閥、吹洗閥、壓力表、壓力信號發生器、管網、噴嘴等組成。 Marine CO2 fire -extinguishing plant consists of cylinder groups、cylinder groups frame、check valve、manifold pipe、selector valve、 pressure relief valve、blow off valve, pressure gauge、pressure signal transmitter 、pipeline、nozzle and etc.

公司郵箱:

產品詳細信息

制造標準/ Manufacturing standards

經MSC.206（81）和MSC.339（91）修正的《國際消防安全系統規則》第5章

Chapter 5 of the International Code for Fire Safety Systems, as amended by MSC.206(81) and MSC.339(91)

MSC/Circ.848 《經修正的1974年SOLAS公約所規定適用于機器處所和貨油泵艙的固定式氣體滅火系統的等效系統認可導則》

MSC/Circ. 848 Revised Guidelines for the Approval of Equivalent Fixed Gas Fire-extinguishing Systems, as Referred to in SOLAS 74，for Machinery Spaces and Cargo Pump-Rooms

MSC.I/Circ.1267《經修訂的1974年SOLAS公約規定的適用于機器處所和貨泵艙的等效固定式滅火系統認可指南》（MSC/Circ.848）的修正案

MSC.I/Circ. 1267 Amendments to Revised Guidelines for the Approval of Equivalent Fixed Gas Fire-extinguishing System, as Referred to in SOLAS 74, for Machinery Spaces and Cargo Pump-Rooms( MSC/Circ.848)

適用范圍/ Scope of application

船舶、海上平臺

Ships、Offshore -platform

裝置組成/ Plant composition

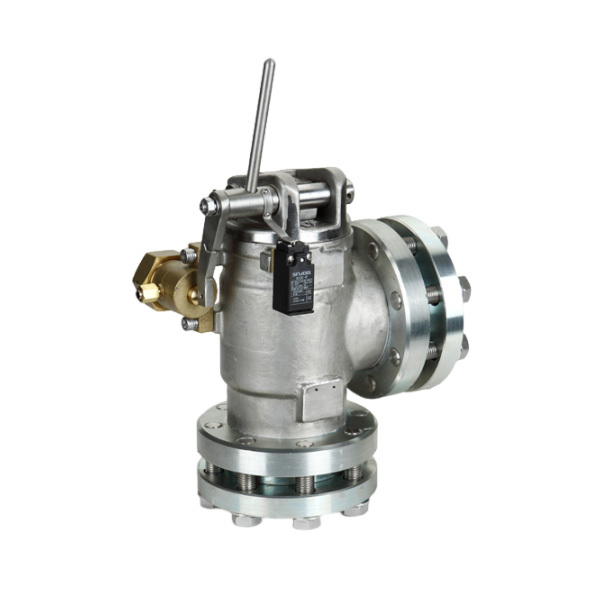

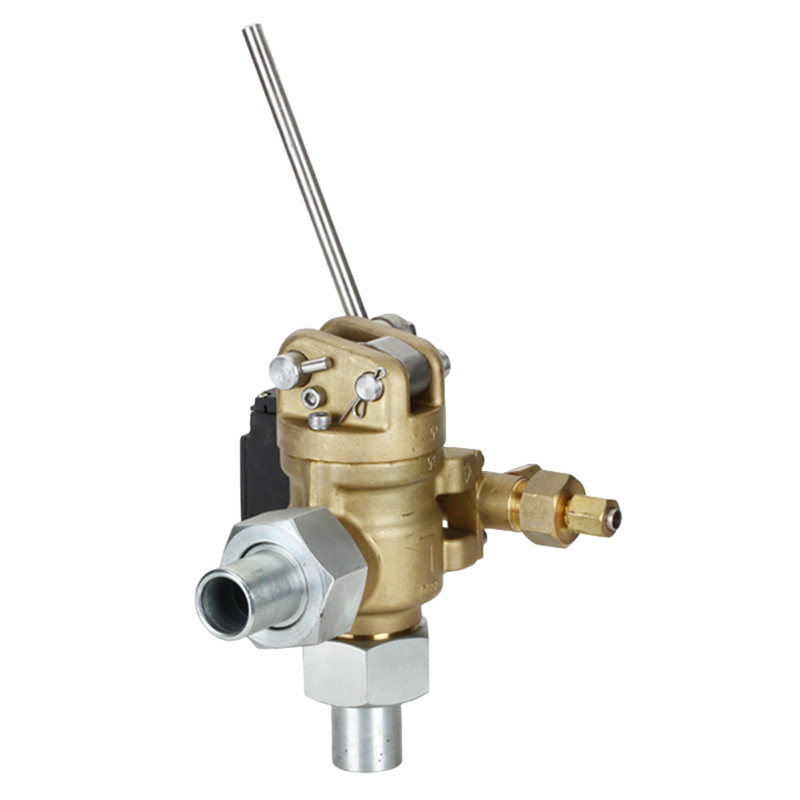

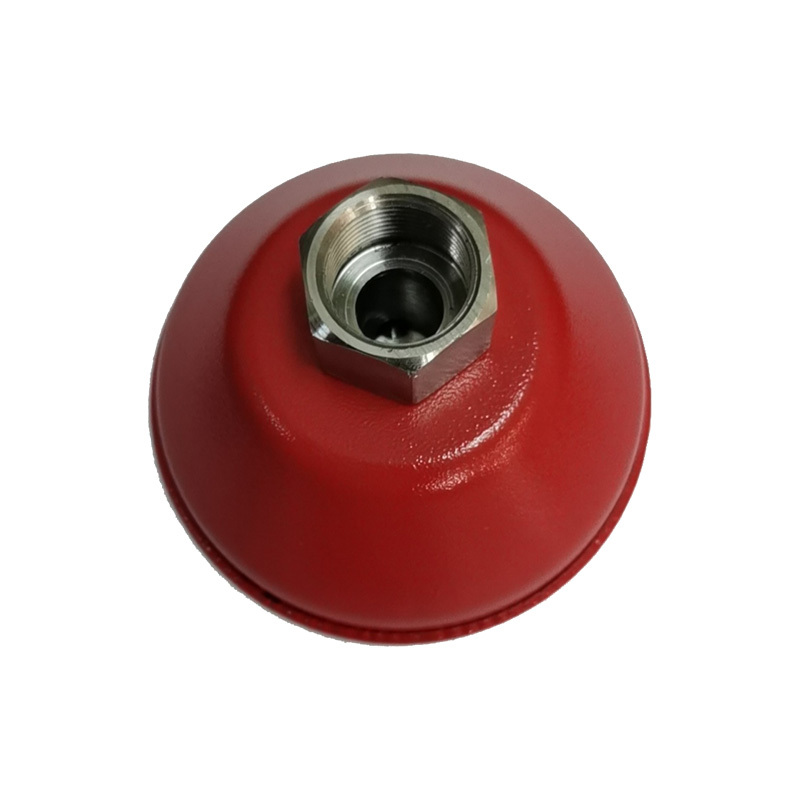

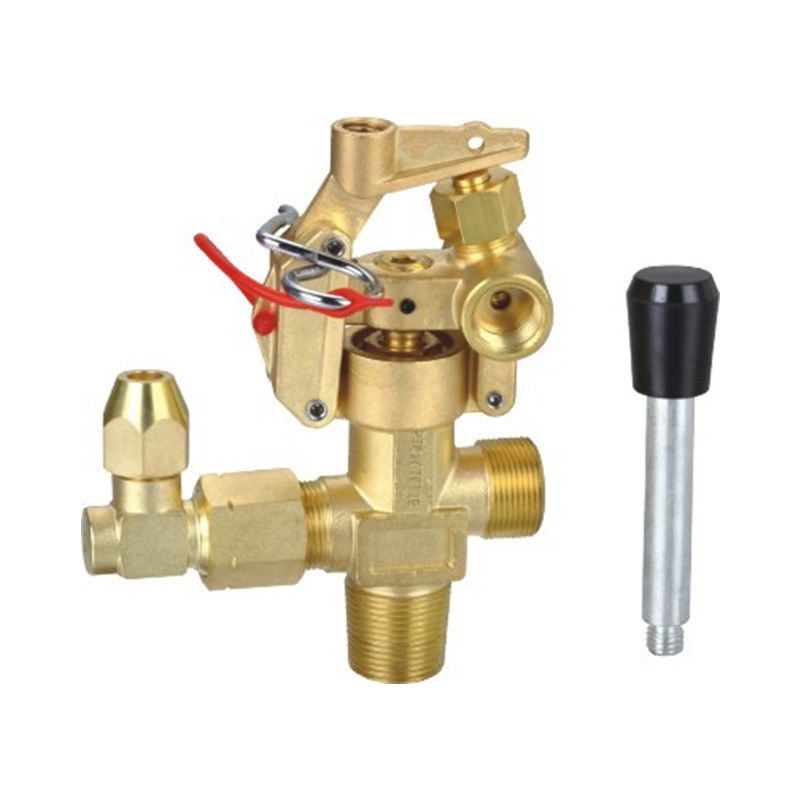

滅火裝置由儲存瓶組、儲存瓶組架、液體單向閥、集流管、選擇閥、壓力釋放閥、吹洗閥、壓力表、壓力信號發生器、管網、噴嘴等組成

Marine CO2 fire -extinguishing plant consists of cylinder groups、cylinder groups frame、check valve、manifold pipe、selector valve、 pressure relief valve、blow off valve, pressure gauge、pressure signal transmitter 、pipeline、nozzle and etc.

技術參數/ Technical particulars

名稱/Name	船用二氧化碳滅火裝置 Marine CO2 Fire Extinguishing Plant
型號/Model	XD
公稱壓力/Nominal pressure	14.7 MPa
氣瓶容積/Cylinder volume	4/8/10/12/40/68 L
氣瓶充裝率/Cylinder filling rate	≤0.67kg/L
開啟方式/Opening ways	氣動/Pneumatic;手動/Manuai
